Descriptive abstract

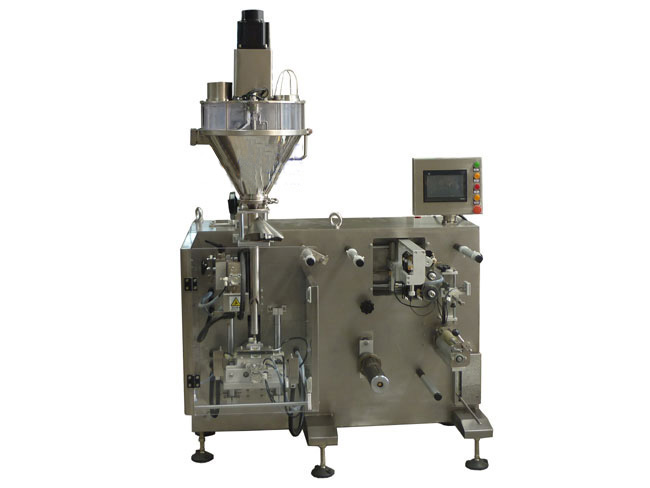

This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging (exhausting) and products transporting automatically as well as counting. can be used in powder and granular material. like milk powder, Albumen powder,solid drink, white sugar, dextrose, coffee powder, and so on.

Main features
Use intelligent temperature controlling machines to have accurate temperature control ensure the artistic and neat seal.
Use PLC Servo System and pneumatic control system and super touch screen to form the drive control center; maximize the whole machine’s control precision, reliability and intelligentized level.
Touch screen can store the technical parameters of various kinds of products, no need to reset while products changing.
Have error indicating system, helping to handle the trouble immediately.
Make block bags and hanging bags according to customers’ different requires.
Have stainless steel model and carbon steel model for choose.

Main Technical Data

Model	JN-200S
Dosing mode	Auger filler
Bag Sizes	3 or 4 side seal,pillow bag,chain bag
Packing Speed	L:55-150mm W:40-120mm
Packing Accuracy	35 – 70 bags/min
Power Supply	≤ 100g, ≤±2%; 100 – 500g, ≤±1%
Total Power	3P  AC208-415V  50/60Hz
Total Weight	3.7kw
Air Supply	300kg
Overall Dimension	6kg/m2 , 0.2m3/min
Hopper Volume	1150×850×2230mm
