Descriptive abstract

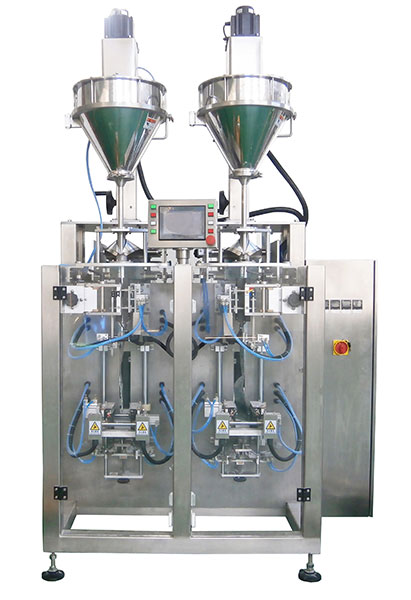

This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging (exhausting) and products transporting automatically as well as counting. can be used in powder and granular material. like milk powder, Albumen powder,solid drink, white sugar, dextrose, coffee powder, and so on.

Main features
OMRON touch screen, easy operation.
Panasonic servo drive film feeding system.
OMRON PLC controller system. Maximize control precision, reliability and intelligence.
Concavo-convex style former unit.
Intelligent temperature control,sealing more perfect.
Optional Device:1.Chain bags & multi-bags half cut-off function,2.Perforation device (round, Europe type hole etc.),3.Tear notch device,4.Date printing.

Main Technical Data

Model	JN-240T
Dosing mode	Auger filler
Bag Type	stick bag,pillow bag,3 side seal,4 side seal
Bag Size	L:55-180mm W:25-110mm
Film Width	60-240mm
Filling Weight	0.5-50g
Packing Speed	56-140 bags/min
Packing Accuracy	0.5 – 10g, ≤±3-5%；10 - 50g, ≤±1-2%
Power Supply	3P  AC208-415V  50/60Hz
Total Power	7.9kw
Total Weight	850kg
Air Supply	6kg/m2 , 0.4m3/min
Overall Dimension	1575×1392×2417mm
Hopper Volume	25L
