Descriptive abstract

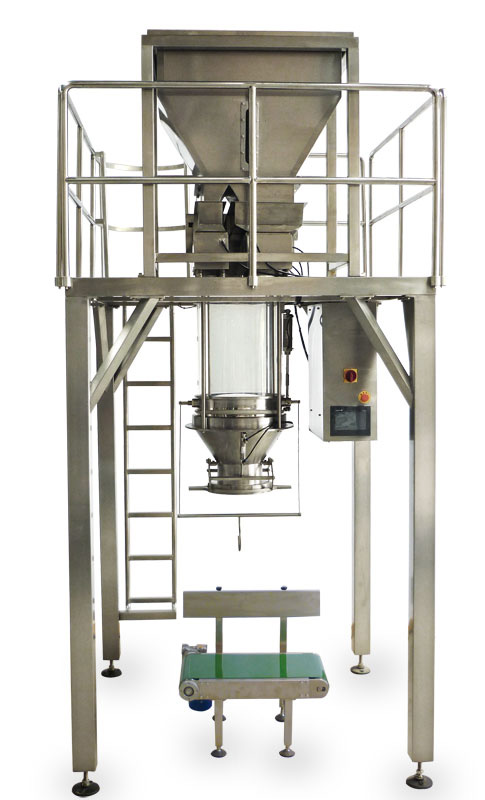

Automatic fixed-quantity packaging steelyard of this series including feeding-in, weighing, pneumatic actuatoring, bag-clamping, dusting, electrical-controlling etc incorporate automatic packaging system..This system normally used in high-speed,constant of the open pocket  etc fixed-quantity weighing packing for solid grain material and powder material: for example rice, legume, milk powder,feedstuff, metal powder, plastic granule and all kinds of chemical raw material.

Main features
PLC, Touch screen & Weighing system control. Maximize the accuracy of weighing and stability.
Whole machine except for machine structure is made of stainless steel 304, suit for causticity chemical raw material.
Dust Concentration, no powder pollution in the workshop, rest material cleaned convenient ,rinse with water
Changeable pneumatic grip,tight sealing, fit for all size of shape.
Alternative feeding method: dual helix,dual vibration,dual-speed free blanking
With belt-conveyor,joint charter,folding machine or heat sealing machine ect can be a complete packing system

Main Technical Data

Dosing Mode	Weighing-hopper weighing
Packing Weight	5 - 25kg(Enlarged 10-50kg)
Packing Accuracy	≤±0.2%
Packing Speed	6 包/分钟 6 bags per min
Power Supply	3P AC208 - 415V  50/60Hz
Air Supply	6kg/cm2 0.1m3/min
Total Power	2.5 Kw
Total Weight	800kg

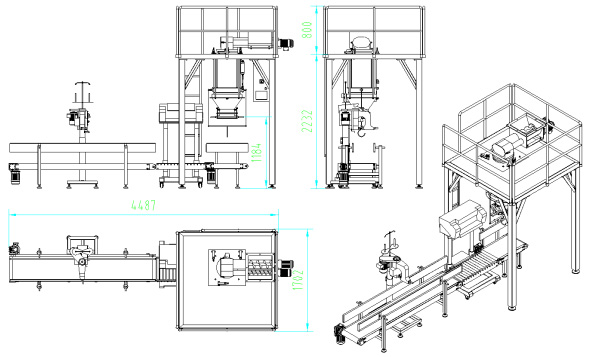

Overall Dimension	4800×1500×3000mm
