Descriptive abstract

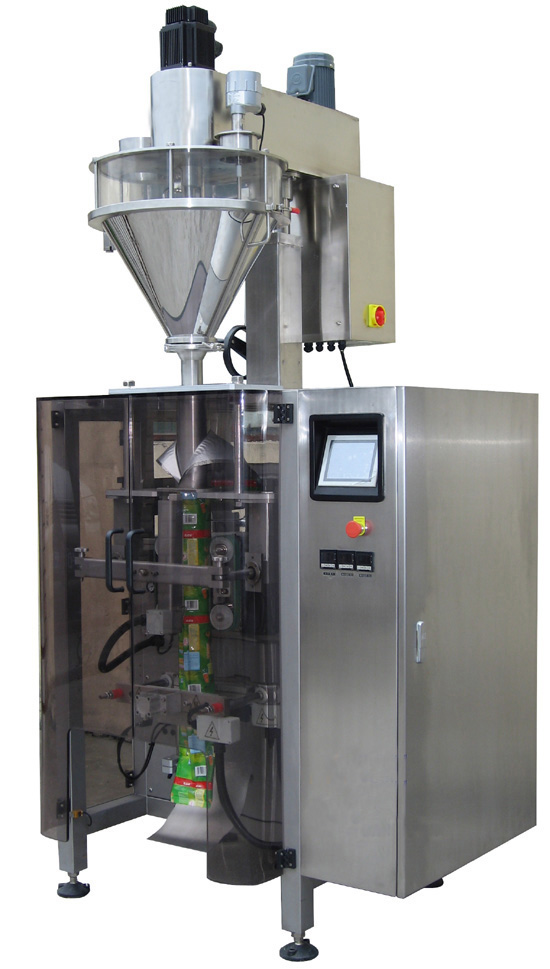

This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging (exhausting) and products transporting automatically as well as counting. can be used in powder and granular material. like milk powder, Albumen powder,solid drink, white sugar, dextrose, coffee powder, and so on.

Main features
Friction drive film transport belts.
Belt driving by the servo motor enables resistant, uniform, well-propartioned seals and give great operating flexibility.
The models suitable for the powder packing,it prevent excess cutoff during sealing and limit the occurrence of sealing damage, contributing to a more appealing finish.
Use PLC Servo System and pneumatic control system and super touch screen to form the drive control center; maximize the whole machine’s control precision, reliability and intelligentized level.
Touch screen can store the technical parameters of various kinds of products, no need to reset while products changing.
Stainless steel structure,contact parts SS304,some driving parts made of electroplating steel.
Extremely simple and easy to learn programming software. Horizontal jaw obstructiondetection, incorporating instantaneous machine stoppage.
Fully interlock guarding system, film reel runout device. Full synchronisation for printers, labellers and feed systems. Apply CE requirement.
The Model is suitable for Pillow bag, Triangle bag ,Chain bag, Hole bag.

Main Technical Data

Model	VFFS420+AG25	VFFS520+AG50	VFFS620+AG75
Dosing mode	Auger Filler	Auger Filler	Auger Filler
Bag Sizes	L:50-230mm W 60-200mm	L:50-300mm W 80-250mm	L:50-350mm W 110-300mm
Packing Speed	25-60 bags/min	25-60 bags/min	25-60 bags/min
Packing Accuracy	100-500g, ≤±1%	100-500g, ≤±1%; >500g, ≤±0.5%	100-500g, ≤±1%; >500g, ≤±0.5%
Power Supply	3P  AC208-415V  50/60Hz	3P  AC208-415V  50/60Hz	3P  AC208-415V  50/60Hz
Total Power	4.7kw	5.9kw	6.9kw
Total Weight	630kg	900kg	1050kg
Air Supply	6kg/m2 , 0.25m3/min	6kg/m2 , 0.25m3/min	6kg/m2 , 0.3m3/min
Overall Dimension	1650×1300×2580mm	1430×1200×2600mm	1478×1280×2945mm
Hopper Volume	25L	50L	75L
